TOY FILLING MACHINE
Key words:
TOY FILLING MACHINE
Category:
Product Description
Introduction:

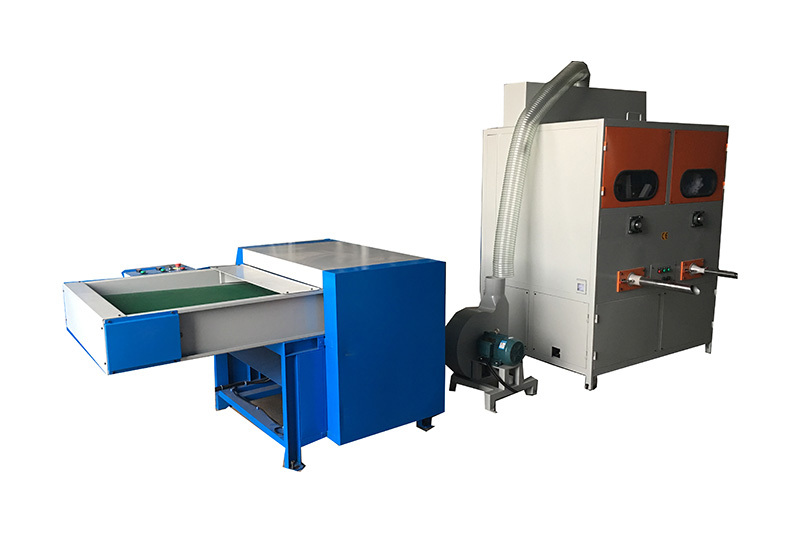

· 1) The whole line is made up of a fiber feeder&carding machine, a doll filling machine.
· 2) it Can be used to open all kinds for polyester fiber, including micro fiber, then fill into plush toys, throw pillows, etc.
· 3) Each filling machine has two filling tubes, and we offer three different size of filling tubes, 10mm, 15mm, 20mm. Customers can choose tube sizes according to actual need.
Parameters:
|
Name |
Fiber Feeder&Carding Machine |
AV-904 |
AV-904A |
|
Dimension |
3650*1228*1820mm |
1800*700*1600mm |
1200*700*1600MM |
|
Air pressure |
/ |
4-10kg/m2 |
0.8mpa |
|
Power |
7kw |
2.2kw |
1.5KW |
|
Capacity |
300kg/h |
per doll size 5-10pcs/min |
Per doll size: 3-6pcs/min |
|
Weight |
700kg |
250kg |
150kgs |
|
AIR TANK |
|
50L |
30L |
Single nozzle filler
Double nozzle filler
